Barbed Wire,Razor Barbed Wire

Barbed wire fence comes from hot-dip galvanized barbed wire and PVC coated barbed wire. Galvanized barbed wire is still popular to strengthen their fence. According to the twist types, barbed wire has single twist barbed wire, double twist barbed wire and traditional twist barbed wire.

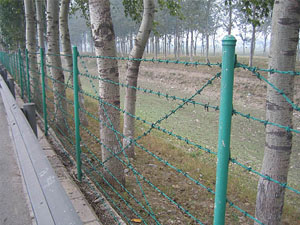

Barbed Wire fence is a kind of modern anti-intrusion security fencing materials. It can be installed on the top of wall and other building forming barbed obstacles to achieve the result of frightening and stopping the aggressive perimeter intruders. When you build the fence, you must be careful; if you're not real careful, you can get seriously hurt by its sharp barb. Barbed wire fencing is extremely adapted to control wild animals as strong and lasting fencing. Barbed wire can enhance the protection of the property, as well as to protect pastures and farmland as livestock fence in the 3, 4, 5 and 6 rows barbed wire. With aesthetic appearance, green PVC barbed wire can used for security fencing in your backyard and garden in order to prevent other animals.

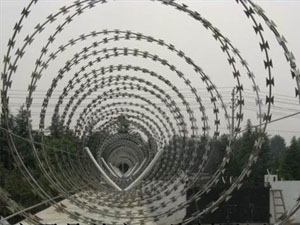

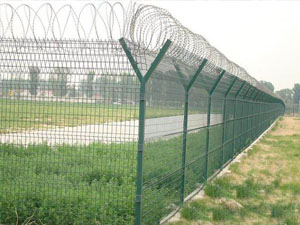

Barbed wire fence also can be used with razor wire coils installed over the chain link fence or other panel fencing forming high security fencing, which are located at the top of the post or on special brackets, and special brackets can attach several rows of barbed wire. The height of fence below barbed wire must exceed 180cm. It is suitable to protect airport and prison. Here are the barbed wire fencing and chain link fence specifications show as below:
Barbed Wire fence with 3 - 6 lines
strand wire diameter : 2.5mm - 3.0 mm.
barb wire diameter 1.5mm - 2.0 mm
barb spacing : 5.0cm - 10 cm.
roll diameter : 450mm - 960 mm.
Materials : Hot dipped galvanized and PVC coated barbed wire.
Chain link fencing
Opening : 25mm-50mm.
wire diameter: 3.0mm - 5.0 mm .
Width of the roll: 1.5m - 2.5 m.
Materials: Hot dipped galvanized, PVC coted and stainless steel wire.

Type

Wire Gauge (SWG)

Barb Distance (cm)

Barb Length (cm)

Electric Galvanized Barbed Wire; Hot-dip galvanized barbed wire

10# x 12#

7.5-15

1.5-3

12# x 12#

12# x 14#

14# x 14#

14# x 16#

16# x 16#

16# x 18#

PVC coated barbed wire; PE barbed wire

before coating

after coating

7.5-15

1.5-3

1.0mm-3.5mm

1.4mm-4.0mm

BWG11#-20#

BWG8#-17#

SWG11#-20#

SWG8#-17#



PVC PE coating thickness: 0.4mm-0.6mm; different colors or length are available at customers request.
